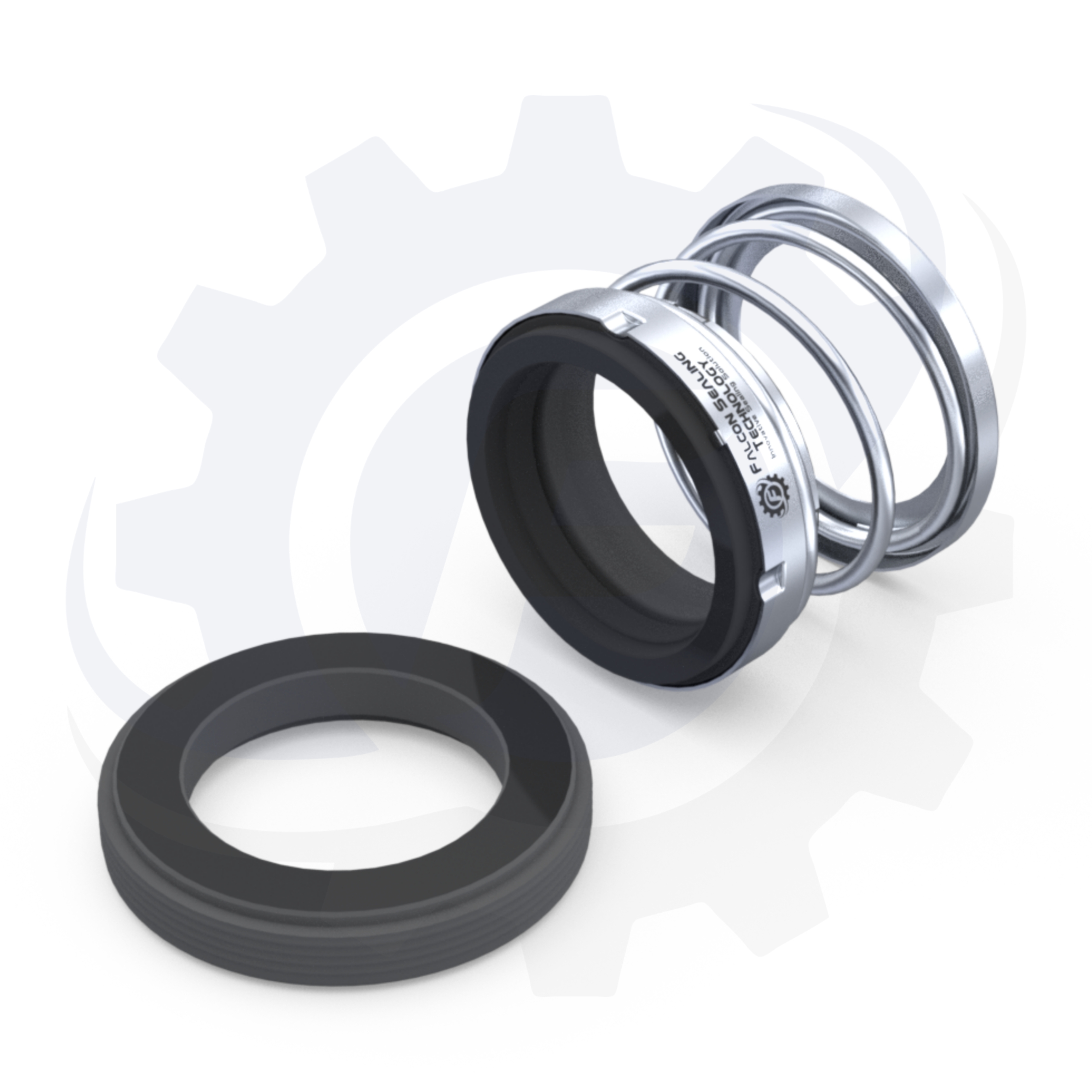

RUBBER BELLOW ROBIN TYPE
FS-RBRT-501
The Seal FS-RBRT-501 / RBRT-501 is a Rubber Bellow Robin Type Mechanical Seals for universal general purpose, Water / Water Based solution like Oils, Fuels and Other Fluids even with some Content with Abrasive and for a very wide operating condition designed destined for Centrifugal pump. Rotary Equipment and Industrial application (Food Processing, Water Systems, Waste Water Treatment for Petrochemical Processing, Pulp and Paper.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces NIR, Ceramic, SiC and TCElastomer Viton, Neoprene, EPDM, NBR and Buna-NMOC SS 304/SS316 -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 8 barTemperature -20°C to 180°CSpeed 3000 r.p.m. -
Salient Features
Single, low cost and mass produced Mechanical Seal with Rubber Bellow.
Central Point Non-Clogging Coil Spring Seal.
Spring Design Seal is suitable for duel-direction of Shaft Rotation.
Bellow Design Seals for Pressure supported and eliminates folds.
Bellow Seals Protecting against Twisting. Unitize, easy-to-fit design seals

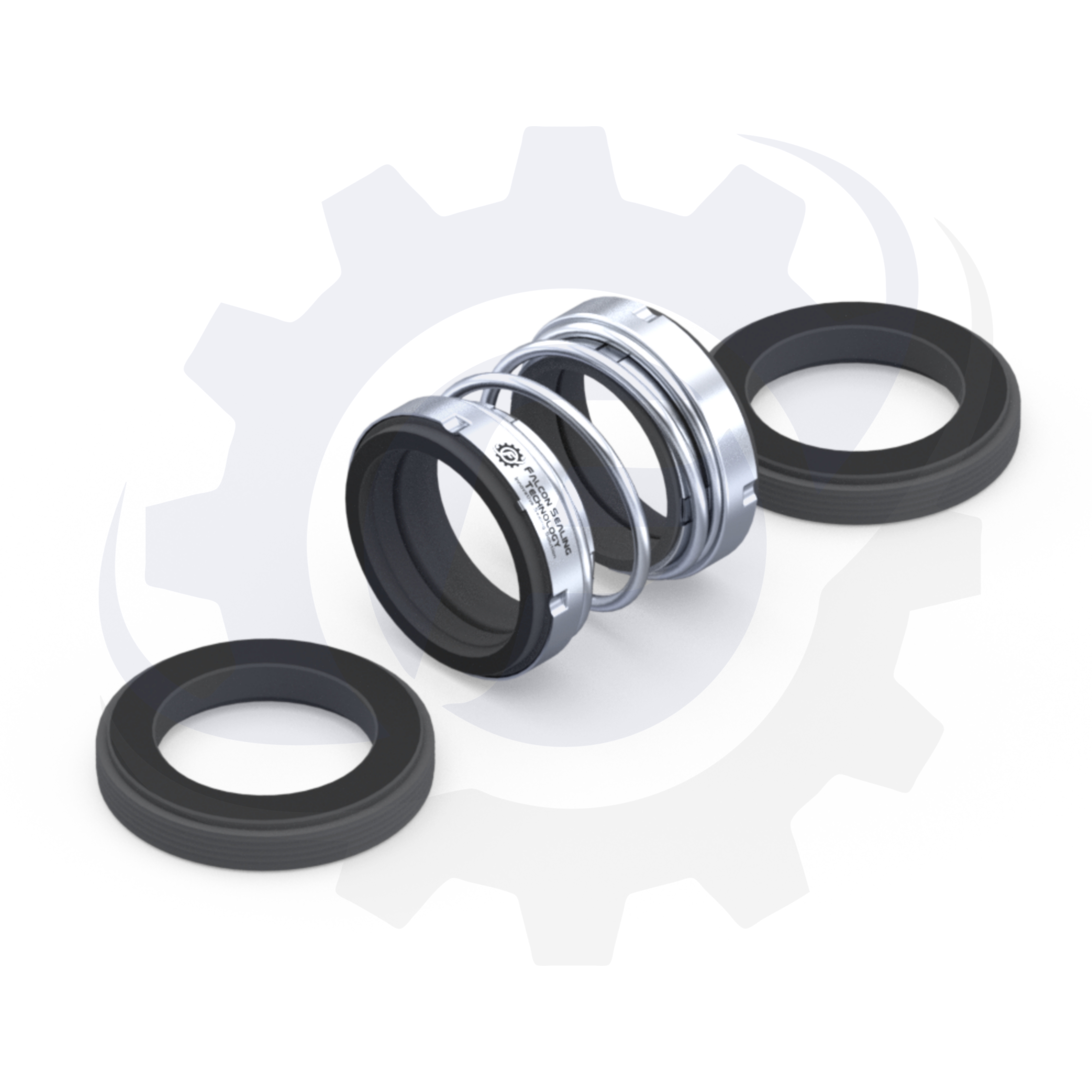

FS-RBRT-501D
RUBBER BELLOW ROBIN TYPE DOUBLE
The Seal FS-RBRT-501D/RBRT-502D is a Rubber Bellow Robin Type Mechanical Seals for universal general purpose, Water / Water Based solution like Oils, Fuels and Other Fluids even with some Content with Abrasive and for a very wide operating condition designed destined for Centrifugal pump. Rotary Equipment and Industrial application (Food Processing, Water Systems, Waste Water Treatment for Petrochemical Processing, Pulp and Paper.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces NiR, Ceramic, SiC and TCElastomer Viton, PTFE, GFT, TTV, EPDM, NBR, Buna-NMOC SS 304/SS 316 -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 8 barTemperature -20°C to 180°CSpeed 3000 r.p.m. -
Salient Features
Single, low cost and mass produced Mechanical Seal with Rubber Bellow.
Central Point Non-Clogging Coil Spring Seal.
Spring Design Seal is suitable for duel-direction of Shaft Rotation.
Bellow Design Seals for Pressure supported and eliminates folds.
Bellow Seals Protecting against Twisting. Unitize, easy-to-fit design seals

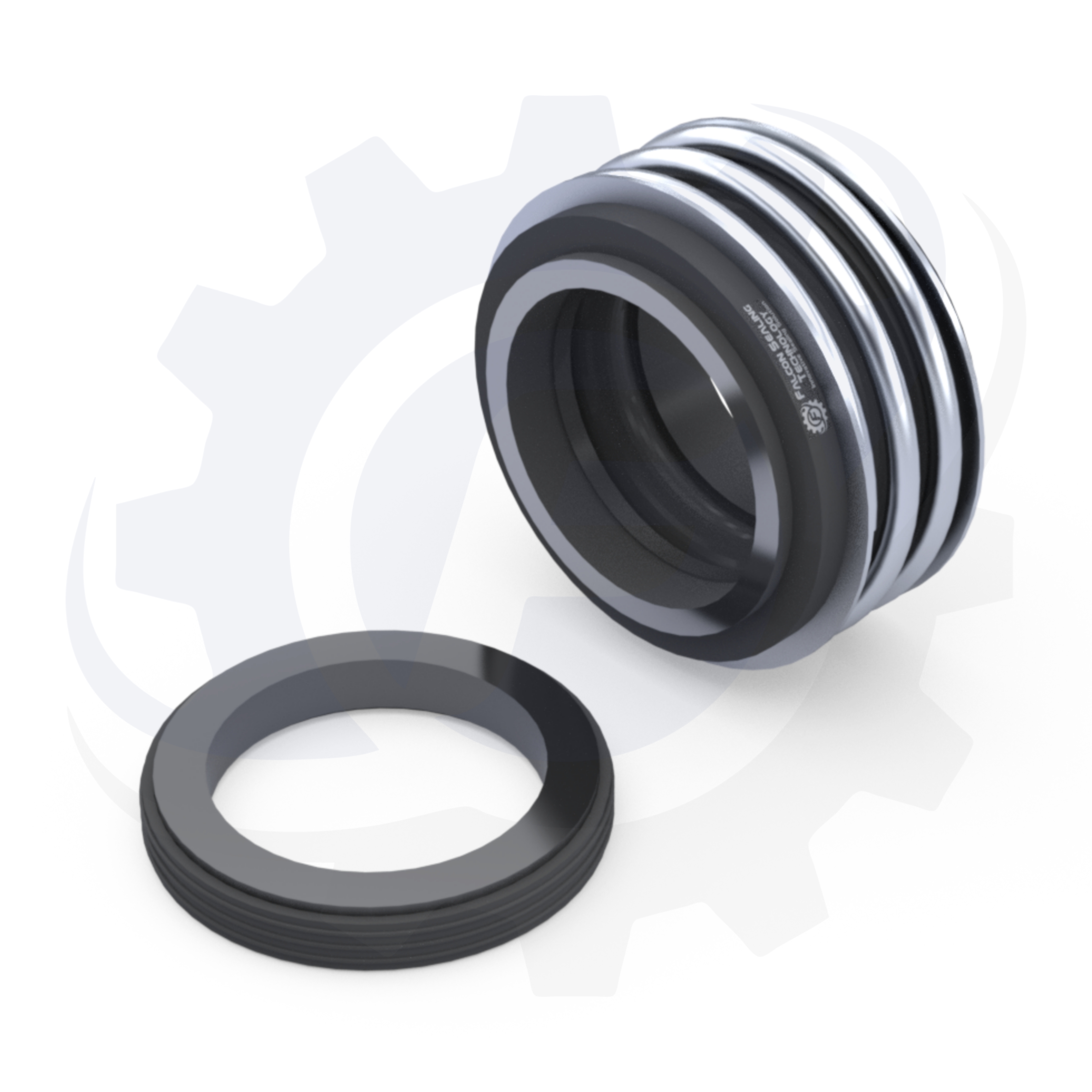

RUBBER BELLOW MECHANICAL SEAL
FS-RB501-11
The Seal FS-R8501-11 is a Compact Single Spring Rubber Bellow Mechanical Seals for universal general purpose for Water/Water Based Solution like Oils, Fuels and Other Fluids and even with some Content with Abrasive and for a very wide operating condition designed for Centrifugal Pump. Rotary Equipment and Industrial applications (Food Processing, Water System, Waste Water Treatment for Petrochemical Processing, Pulp and Paper)
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces NIR, Ceramic, SIC and TCElastomer Viton, Neoprene, EPDM, NBR and Buna-NMOC SS 304/SS 316 -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 8 barTemperature -20°C to 180°CSpeed 3000 r.p.m. -
Salient Features
Single, low cost and mass produced Mechanical Seal with Rubber Bellow. Central Point Non-Clogging Coil Spring Seal.
Spring Design Seal is suitable for duel-direction of Shaft Rotation
Bellow Design Seals for Pressure supported and eliminates foids
Bellow Seals Protecting against Twisting, Unitize, easy-to-fit design seals

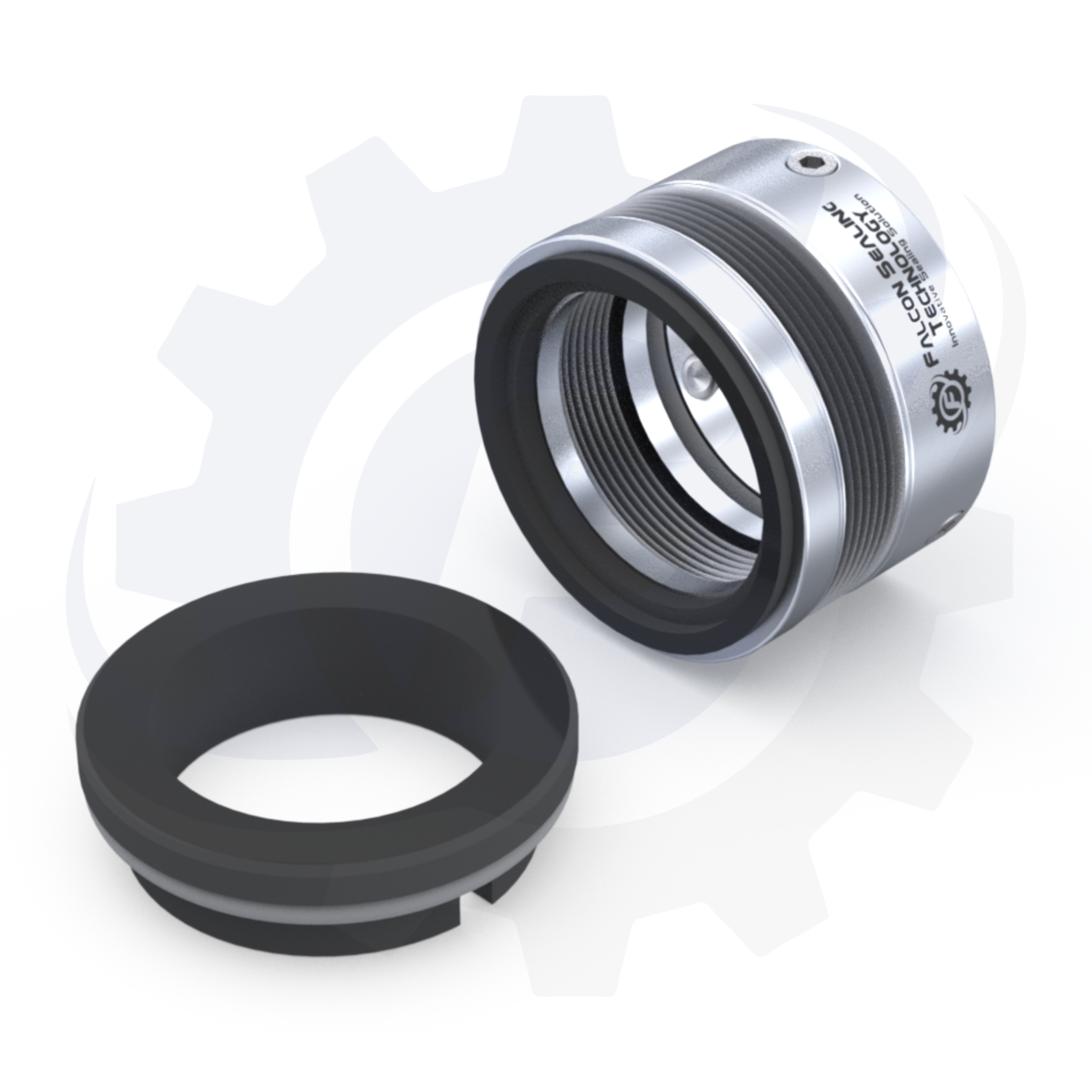

FS-MB601-O / MB601-V
METAL BELLOW MECHANICAL SEAL
FS-MB601-0/MB601-V ring type mechanical seals are destined for petrochemical, chemical, pharmaceutical and food processing industry, for process pumps and other equipment with rotating shaft. Rotating bellows design acts to clear convolutions and prevent accumulation of debris. These bellow seals are constructed by welding a series of diaphragms together at the edges to form a bellows unit. Recommended for high temperature mediums e.g. hot oils, pitch, tar and other hydrocarbons, fuels, liquid gases and other mediums with low content of abrasives.
-
Materials
Seal Ring Faces Carbon, SiC and TCcSeat Faces TC and SiCElastomer Vitoh, PTFE, FEP, EPDM and FFKMElastomer SS 316, Hast- C and Carpenter 42Bellow MOC HAST-C, AM350 and Inconel -
Operating Limit
Shaft Dia 19mm to 100mmPressure Up to 25 barTemperature -20 °C to 260 °CSpeed 3000 г.р.m. -
Salient Features
Single Acting.
Dual directional.
Inside mounted.
Inherently Balanced Mechanical Seal.
Independent of direction of rotation.
METAL BELLOW GRAFOIL PACKING BALANCED
FS-MB601-G
FS-MB601-G ring type mechanical seals are destined for petrochemical, chemical, pharmaceutical and food processing industry, for process pumps and other equipment with rotating shaft. Rotating bellows design acts to clear convolutions and prevent accumulation of debris. These bellow seals are constructed by welding a series of diaphragms together at the edges to form a bellows unit. Recommended for high temperature mediums e.g. hot oils, pitch, tar and other hydrocarbons, fuels, liquid gases and other mediums with low content of abrasives.
-
Materials
Seal Ring Faces Carbon, SiC and TCcSeat Faces TC and SiCElastomer Viton, PTFE, FEP, EPDM and FFKMEnd fitting MOC SS 316, Hast- C and Carpenter 42Bellow MOC HAST-C, AM350 and Inconel -
Operating Limit
Shaft Dia 20mm to 100mmPressure Up to 25 barTemperature -30°C to 260°CSpeed 3000 r.p.m. -
Salient Features
Single Acting.
Dual directional.
Inside mounted.
Inherently Balanced Mechanical Seal.
Independent of direction of rotation.

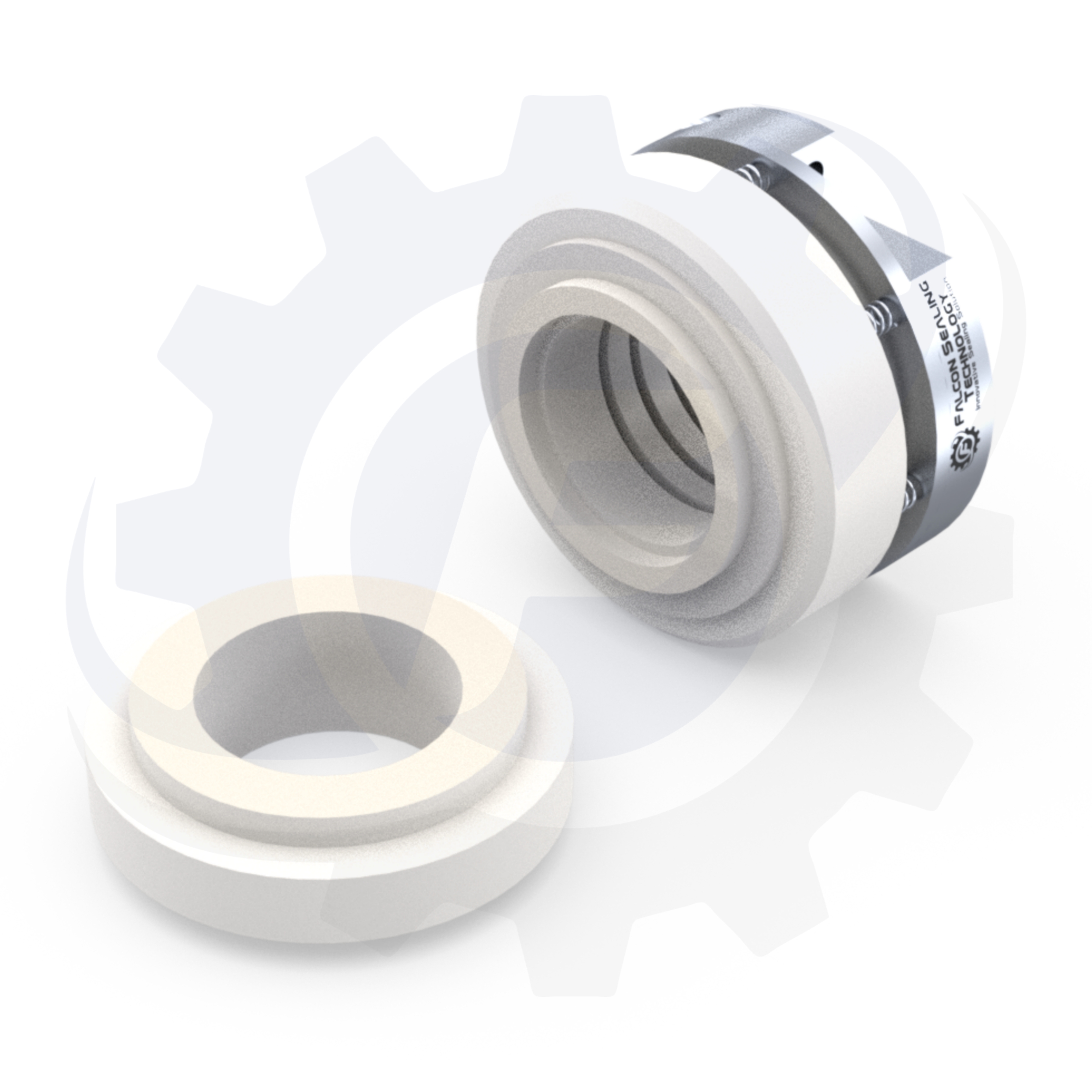

FS-TB701
TEFLON (PTFE) BELLOW MECHANICAL SEAL
The Falcon Sealing Technology FS-TB701 is a Teflon bellow mechanical seal designed for use in highly corrosive environments. Its key feature is the Teflon (PTFE) bellow, which isolates all metal parts, including the springs, from the sealed fluid. This ensures that the seal remains chemically inert and provides long-lasting service life, even with aggressive media.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces Ceramic and SiCElastomer PTFE and GFTMOC SS 316, Hast -C and Alloy 20Bellow MOC PTFE + GFT Composite -
Operating Limit
Shaft Dia 25mm to 100mmPressure Up to 25 barTemperature -70°C to 350°CSpeed 3000 r.p.m. -
Salient Features
PTFE Bellow Mechanical Seal.
Dual Directional Seal.
Outside Mounted Seal.
Hydraulically Balanced PTFE Bellow Mechanical Seal.
Multi-Spring Design Seal.
