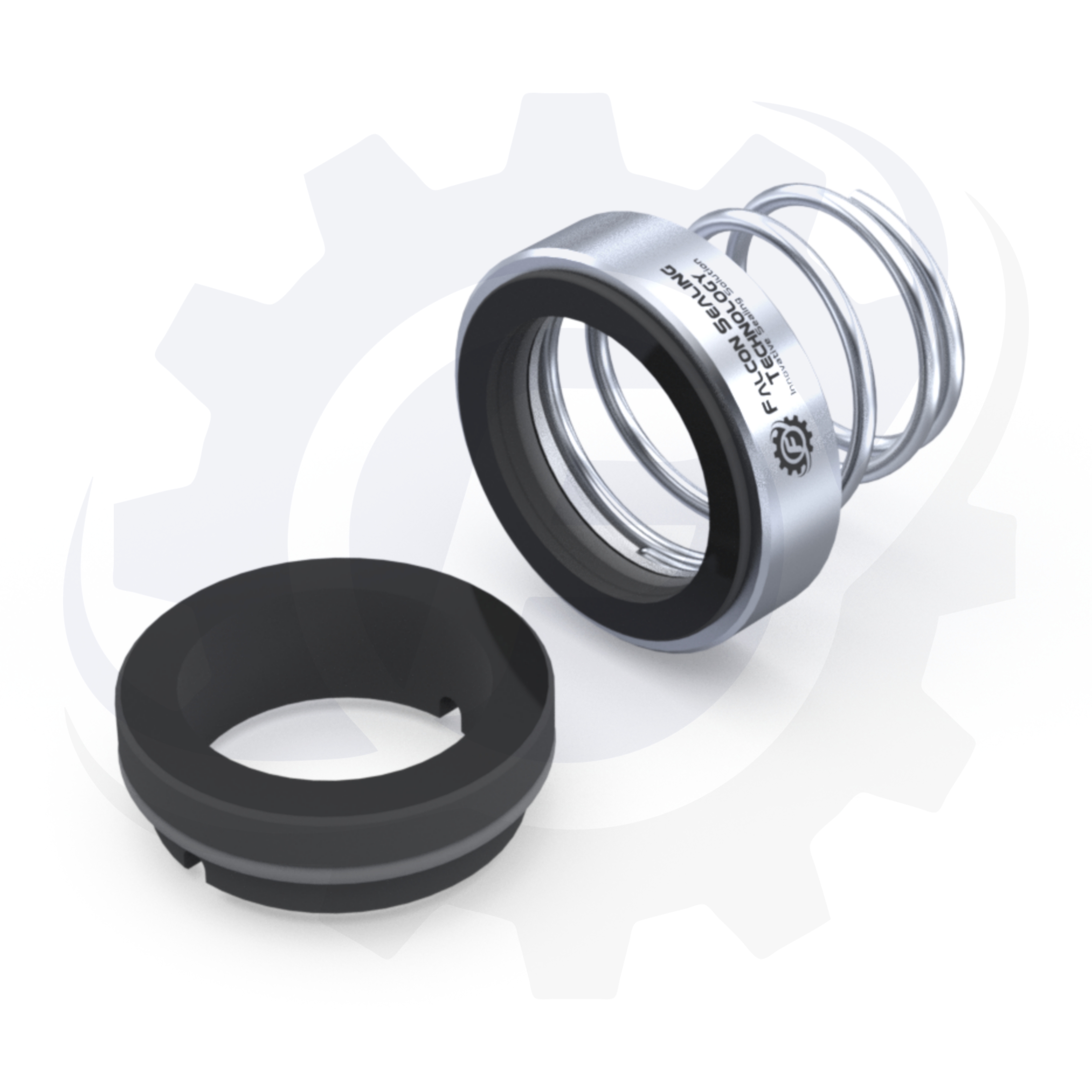

CONICAL SPRING MECHANICAL SEAL
FS-CN101
Conical Coil Spring Mechanical Seal FS-CN101 looking from Sliding Face of the Rotating Seal Ring is designed as Right Hand Shaft Rotation which needs Right Hand Spring and Vice Versa. These Seals are Cost Effective Seals for Basic Application Equipment such as Centrifugal Pump and other Equipment with Rotating Shaft, Handling Water, Oils, Fuels, Mild Chemicals and Liquids Containing of Low Quantity of Abrasive.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces NIR, Ceramic, SiC and TCElastomer Viton, Neoprene, EPDM, NBR and Buna-NMOC SS 316 -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 7 barTemperature -20°C to 140°CSpeed 3000 r.p.m. -
Salient Features
Conical Single Coil Spring Mechanical Seal.
Inside mounted.
Unbalanced Pusher Mechanical Seals.
Spring design depended on Shaft Rotation with Central Tapered Spring.
FS-SS201/ SS201V
SINGLE SPRING MECHANICAL SEAL
The Seal FS-SS201 / SS201V with Single Spring design and is depended on the Shaft Rotation. Looking from Sliding Face of the Rotating Seal Ring is designed as right hand Spring for Shaft Rotation and vice-versa. In Seal FS-21 ('O' Ring Type) is designed as Torque Transmission from Drive Collar to Spring and Seal Ring. These Seals is cost effective for Basic Application Equipment such as Centrifugal Pump and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry and General Chemical Slurry.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces Ceramic, SiC and TCElastomer Viton, PTFE, GFT, TTV, EPDM, NBR, Buna-NMOC SS 316 -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 10 barTemperature -20°C to 150°CSpeed 3000 r.p.m. -
Salient Features
Single Acting Unbalance Pusher type Mechanical Seal.
Inside Mounted Mechanical Seal
Spring Design depended on Shaft Rotation
Type 42 seal having Universal Chemical Compatibility due to design of PTFE Elastomer

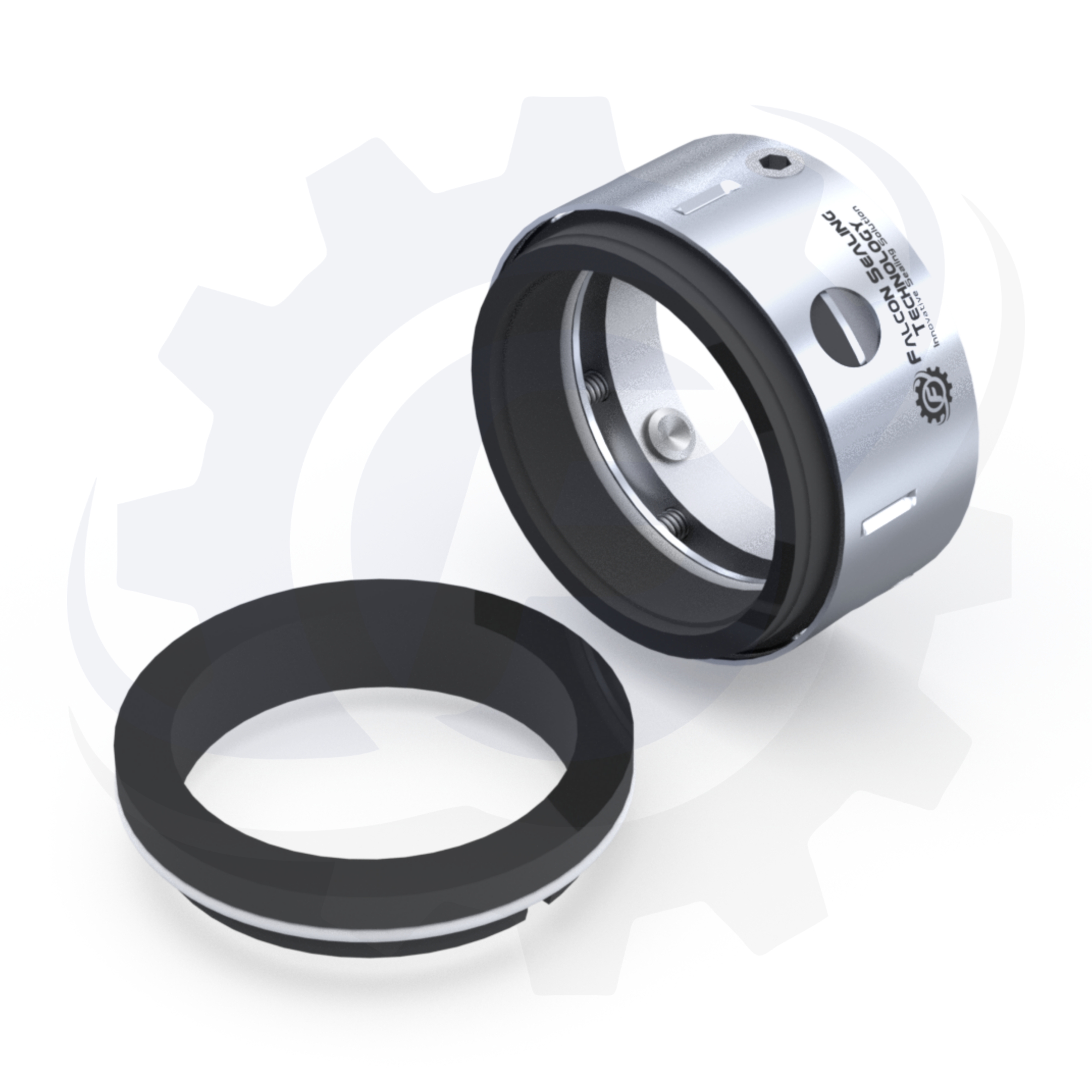

MULTI SPRING MECHANICAL SEAL
FS-MS301/MS301W
The Falcon Sealing Technology FS-MS301/MS301W is a multi-spring balanced mechanical seal. This type of seal is a pusher-style mechanical seal, meaning a secondary seal moves along the shaft. It's designed to operate in high-pressure environments by using a balanced design, which reduces the force on the seal faces, thereby minimizing heat generation and wear. The use of multiple springs provides even pressure distribution around the seal face, which enhances its reliability and extends its service life
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces Ceramic, SiC and TCElastomer Viton, Neoprene, EPDM, NBR and Buna-NMOC SS 316 -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 25 barTemperature -20°C to 260°CSpeed 3000 r.p.m. -
Salient Features
Seal Ring Faces: Cabon, GFT, SiC and TC
Seat Faces: Ceramic, SiC and TC
Elastomer: Viton, PTFE, GFT, EPDM, NBR, Buna-N and FFKM
MOC: SS 316, Hast -C and Alloy - 20
FS-MS301DT

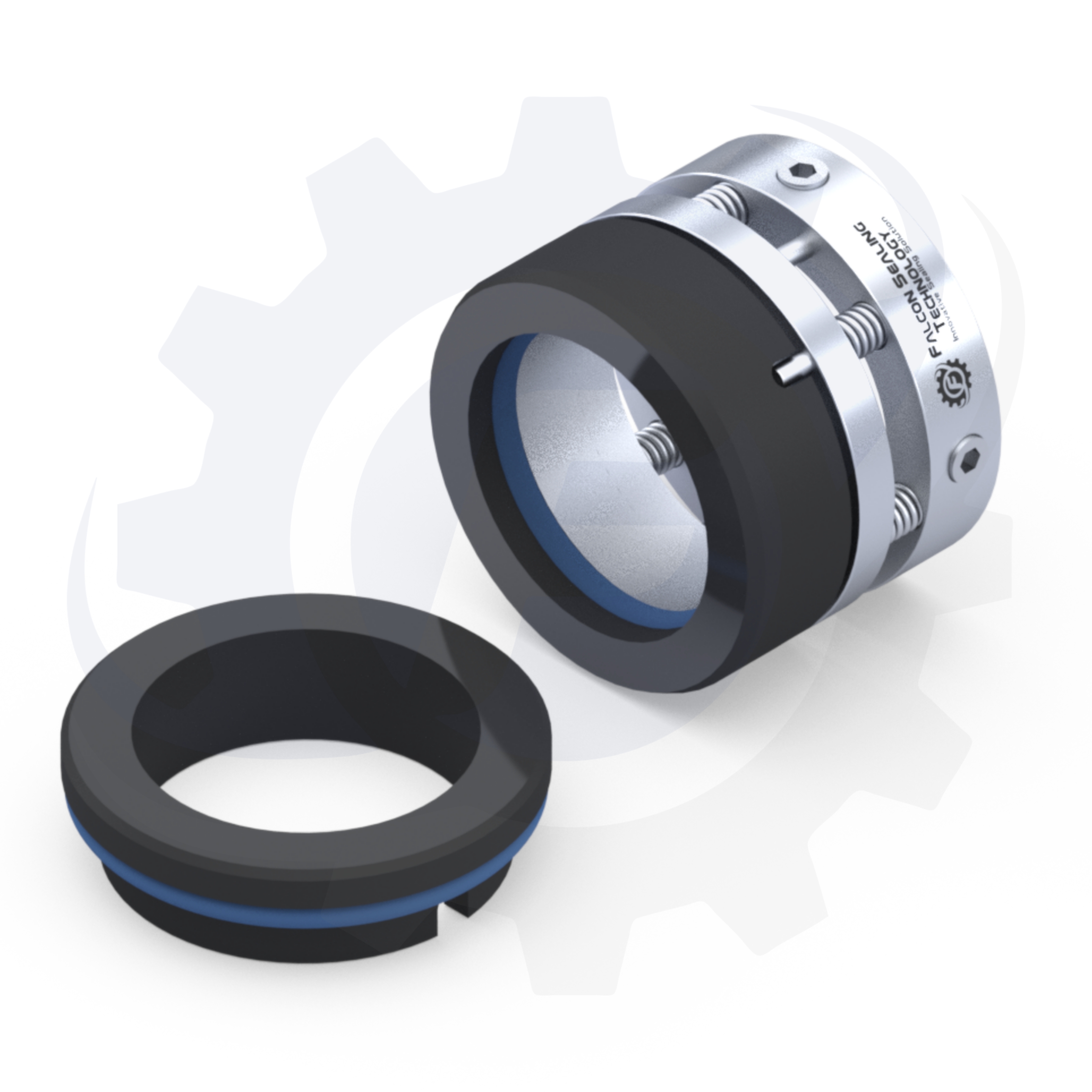

MULTI SPRING DURA TYPE MECHANICAL SEAL
The Falcon Sealing Technology FS-MS301DT is a multi-spring, dura-type, unbalanced mechanical seal. This type of seal is designed to be a reliable and versatile solution for various industrial sealing applications.
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces Ceramic, SiC and TCElastomer Viton, PTFE, GFT, TTV, EPDM, NBR, Buna-NMOC SS 316 -
Operating Limit
Shaft Dia 19mm to 100mm (0.75" to 3.94")Pressure 10 bar (145 PSI)Temperature -20 °C to +240 °C (-4 °F to +464 °F)Speed 2900 г.р.m. -
Salient Features
For plain shafts
Single seal
Unbalanced
Open rotary multi spring retainer
Independent of direction of rotation
MULTI SPRING DOUBLE MECHANICAL SEAL
FS-DMS301
The Falcon Sealing Technology FS-DMS301 is a multi-spring Double mechanical seal. This type of seal is a pusher-style mechanical seal, meaning a secondary seal moves along the shaft. It's designed to operate in high-pressure environments by using a balanced design, which reduces the force on the seal faces, thereby minimizing heat generation and wear. The use of multiple springs provides even pressure distribution around the seal face, which enhances its reliability and extends its service life
-
Materials
Seal Ring Faces Carbon, SiC and TCSeat Faces Ceramic, SiC and TCElastomer Viton, Neoprene, EPDM, NBR and Buna-NMOC SS 316 -
Operating Limit
Shaft Dia 10mm to 100mmPressure Up to 25 barTemperature -20°C to 260°CSpeed 3000 r.p.m. -
Salient Features
Seal Ring Faces: Cabon, GFT, SiC and TC
Seat Faces: Ceramic, SiC and TC
Elastomer: Viton, PTFE, GFT, EPDM, NBR, Buna-N and FFKM
MOC: SS 316, Hast -C and Alloy - 20
FS-WS401

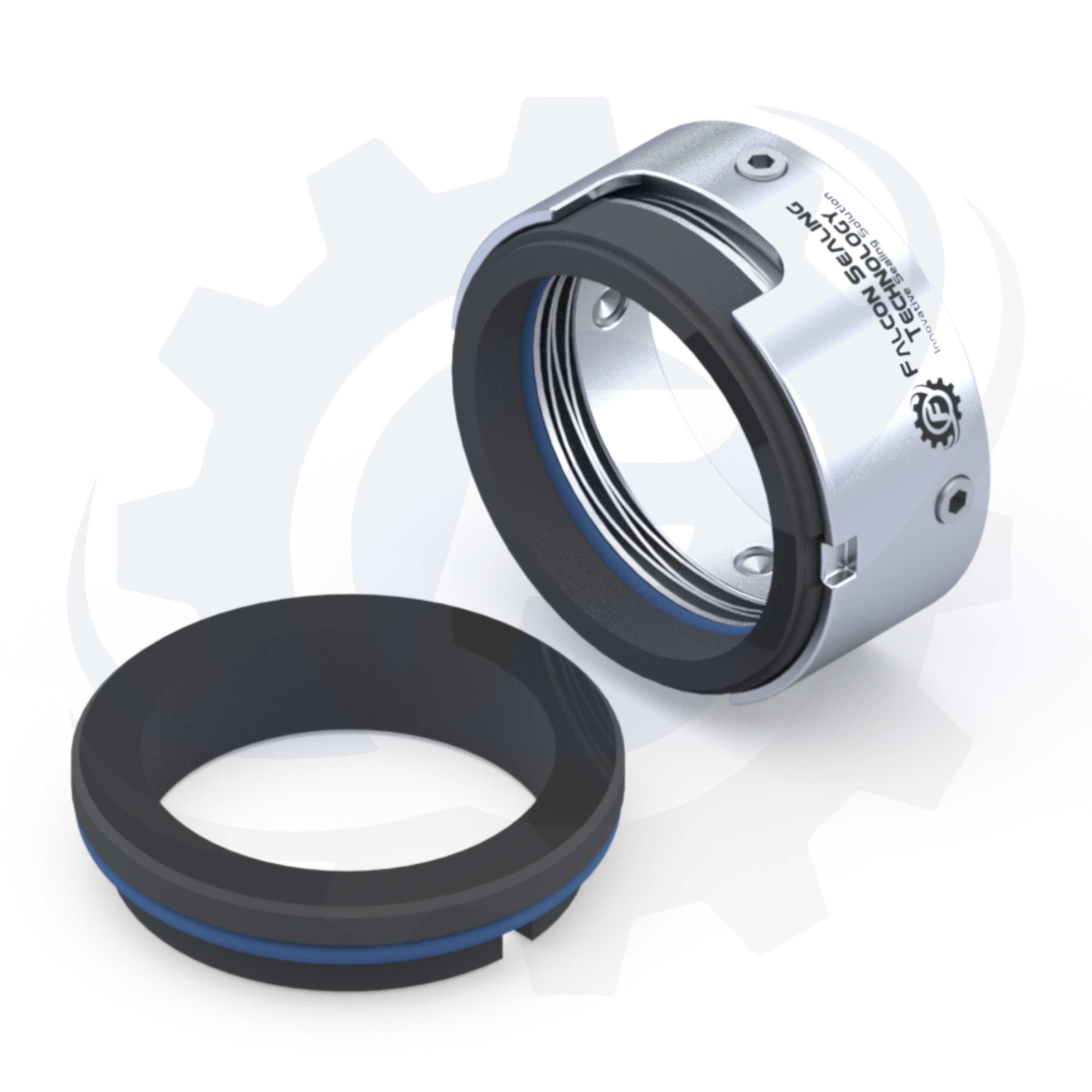

WAVE SPRING MECHANICAL SEAL
The FS-WS401 is a wave spring unbalanced seal made by Falcon Sealing Technologies. It's a single, internally mounted seal that's independent of the direction of shaft rotation. The key feature of this type of seal is the use of a single wave spring, which makes it compact and reduces the overall axial length. This design also helps prevent spring clogging, making it suitable for applications with dirty or slurry-containing media
-
Materials
Hardware SS 316/SS 304Seal Ring SiC/ Special CasteMating Ring SiC / CarbonSecondary FKM/Silicon/NBR/EPR /Neoprene / Karlez -
Operating Limit
Pressure Upto 15 kg/cm²Temperature Upto 280°C (Depending on elastomer)Speed 4000 RPM -
Salient Features
High performance.
Low maintenance a
Easy to install.
